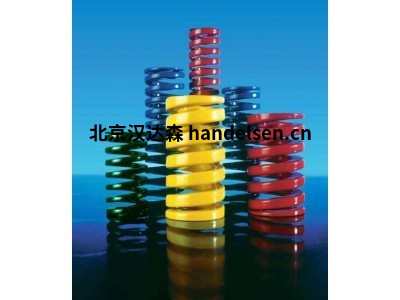

專業銷售進口原裝德國Danly彈簧

最小起訂貨量

無限制

您可能還關注相似產品

漢達森高偉

主營產品|截止閥，調節閥，齒輪泵，限位開關等
公司榮譽|

供應產品分類

暫無分類

漢達森高偉熱銷排行

本頁信息為漢達森高偉原廠生產的產品“專業銷售進口原裝德國Danly彈簧”產品信息，如您想了解更多關于“專業銷售進口原裝德國Danly彈簧”價格、型號、廠家的相關信息，請致電我們，或QQ在線交談。

品牌Danly	有效期至長期有效	最后更新2022-04-12 14:43
瀏覽次數4

專業銷售進口原裝德國Danly彈簧

專業銷售進口原裝德國Danly彈簧

Danly IEM是北美工業模具制造用品和組件的制造商。90多年來，Danly IEM一直提供高質量的產品和服務、創新開發和定制產品。

Danly IEM產品系列包括廣泛的導柱、襯套、模具彈簧、沖頭、氣壓機、耐磨板和凸輪，以及其他模具制造商的用品。我們還提供特殊的沖頭和定制產品，以滿足客戶的要求。

Danly IEM的目標之一是行業提供產品，幫助客戶找到改善運營的解決方案。攻絲工具的開發為提高客戶效率提供了機會。這些工具允許客戶在沖壓操作中攻絲產品，從而消除攻絲產品的二次操作。

為了保持我們的地位和聲譽，我們大力投資開發先進的制造設備。

Danly IEM是全球零件成型行業值得信賴的解決方案和創新的名稱。

Danly彈簧產品目錄

DieMax XL Springs: Light Load (Green)

Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-0604-11	SPRG.0.375X 1.00 GREEN	Rectangular	3/8(in) 10(mm)	1.00(in) 25(mm)	6.30(lbs per 1/10in) 11.0(N/mm)
9-0604-119	ROUND SPRING 0.375X1.0 GREEN	Round	3/8(in)	1.00(in)	2.52(lbs per 1/10in)
9-0605-11	SPRG.0.375X 1.25-GREEN	Rectangular	3/8(in) 10(mm)	1.25(in) 32(mm)	5.00(lbs per 1/10in) 8.8(N/mm)
9-0605-119	ROUND SPRG.0.375X1.25GREEN	Round	3/8(in)	1.25(in)	1.96(lbs per 1/10in)
9-0606-11	SPRG.0.375X 1.50-GREEN	Rectangular	3/8(in) 10(mm)	1.50(in) 38(mm)	4.22(lbs per 1/10in) 7.4(N/mm)
9-0606-119	ROUND SPRG.0.375X1.50GREEN	Round	3/8(in)	1.50(in)	1.59(lbs per 1/10in)
9-0607-11	SPRG.0.375X 1.75-GREEN	Rectangular	3/8(in) 10(mm)	1.75(in) 44(mm)	3.59(lbs per 1/10in) 6.3(N/mm)
9-0607-119	ROUND SPRG.0.375X1.75GREEN	Round	3/8(in)	1.75(in)	1.35(lbs per 1/10in)
9-0608-11	SPRG.0.375X 2.00-GREEN	Rectangular	3/8(in) 10(mm)	2.00(in) 51(mm)	3.06(lbs per 1/10in) 5.4(N/mm)
9-0608-119	ROUND SPRG.0.375X2.00GREEN	Round	3/8(in)	2.00(in)	1.19(lbs per 1/10in)
9-0610-11	SPRG.0.375X 2.50-GREEN	Rectangular	3/8(in) 10(mm)	2.50(in) 64(mm)	2.56(lbs per 1/10in) 4.5(N/mm)
9-0610-119	ROUND SPRG.0.375X2.50GREEN	Round	3/8(in)	2.50(in)	0.93(lbs per 1/10in)
9-0612-11	SPRG.0.375X 3.00-GREEN	Rectangular	3/8(in) 10(mm)	3.00(in) 76(mm)	2.13(lbs per 1/10in) 3.7(N/mm)
9-0612-119	ROUND SPRG.0.375X3.00GREEN	Round	3/8(in)	3.00(in)	0.76(lbs per 1/10in)
9-0648-11	SPRG.0.375X12.0 GREEN	Rectangular	3/8(in) 10(mm)	12.00(in) 305(mm)	0.49(lbs per 1/10in) 0.9(N/mm)
9-0648-119	ROUND SPRG.0.375X12.0GREEN	Round	3/8(in)	12.00(in)	0.18(lbs per 1/10in)
9-0804-11	SPRG.0.500X 1.00-GREEN	Rectangular	1/2(in) 12.5(mm)	1.00(in) 25(mm)	10.90(lbs per 1/10in) 19.0(N/mm)
9-0804-119	ROUND SPRG.0.500X1.00GREEN	Round	1/2(in)	1.00(in)	4.88(lbs per 1/10in)
9-0805-11	SPRG.0.500X 1.25-GREEN	Rectangular	1/2(in) 12.5(mm)	1.25(in) 32(mm)	9.40(lbs per 1/10in) 16.5(N/mm)
9-0805-119	ROUND SPRG.0.500X1.25GREEN	Round	1/2(in)	1.25(in)	3.71(lbs per 1/10in)
9-0806-11	SPRG.0.500X 1.50-GREEN	Rectangular	1/2(in) 12.5(mm)	1.50(in) 38(mm)	7.80(lbs per 1/10in) 13.6(N/mm)
9-0806-119	ROUND SPRG.0.500X1.50-GREEN	Round	1/2(in)	1.50(in)	3.04(lbs per 1/10in)
9-0807-11	SPRG.0.500X 1.75-GREEN	Rectangular	1/2(in) 12.5(mm)	1.75(in) 44(mm)	6.60(lbs per 1/10in) 11.6(N/mm)
9-0807-119	ROUND SPRG.0.500X1.75-GREEN	Round	1/2(in)	1.75(in)	2.54(lbs per 1/10in)
9-0808-11	SPRG.0.500X 2.00-GREEN	Rectangular	1/2(in) 12.5(mm)	2.00(in) 51(mm)	5.80(lbs per 1/10in) 10.2(N/mm)
9-0808-119	ROUND SPRG.0.500X2.00-GREEN	Round	1/2(in)	2.00(in)	2.17(lbs per 1/10in)
9-0810-11	SPRG.0.500X 2.50-GREEN	Rectangular	1/2(in) 12.5(mm)	2.50(in) 64(mm)	4.67(lbs per 1/10in) 8.2(N/mm)
9-0810-119	ROUND SPRG.0.500X2.50-GREEN	Round	1/2(in)	2.50(in)	1.68(lbs per 1/10in)
9-0812-11	SPRG.0.500X 3.00-GREEN	Rectangular	1/2(in) 12.5(mm)	3.00(in) 76(mm)	3.58(lbs per 1/10in) 6.3(N/mm)
9-0812-119	ROUND SPRG.0.500X3.00-GREEN	Round	1/2(in)	3.00(in)	1.43(lbs per 1/10in)
9-0814-11	SPRG.0.500X 3.50-GREEN	Rectangular	1/2(in) 12.5(mm)	3.50(in) 89(mm)	3.05(lbs per 1/10in) 5.3(N/mm)
9-0814-119	ROUND SPRG.0.500X3.50-GREEN	Round	1/2(in)	3.50(in)	1.22(lbs per 1/10in)
9-0848-11	SPRG.0.500x12.0-GREEN	Rectangular	1/2(in) 12.5(mm)	12.00(in) 305(mm)	0.84(lbs per 1/10in) 1.5(N/mm)
9-0848-119	ROUND SPRG.0.500x12.0-GREEN	Round	1/2(in)	12.00(in)	0.34(lbs per 1/10in)
9-1004-11	SPRG.0.625X 1.00-GREEN	Rectangular	5/8(in) 16(mm)	1.00(in) 25(mm)	18.00(lbs per 1/10in) 31.6(N/mm)
9-1004-119	ROUND SPRG.0.625X1.00-GREEN	Round	5/8(in)	1.00(in)	10.20(lbs per 1/10in)
9-1005-11	SPRG.0.625X 1.25-GREEN	Rectangular	5/8(in) 16(mm)	1.25(in) 32(mm)	13.40(lbs per 1/10in) 23.5(N/mm)
9-1005-119	ROUND SPRG.0.625X1.25-GREEN	Round	5/8(in)	1.25(in)	7.70(lbs per 1/10in)
9-1006-11	SPRG.0.625X 1.50-GREEN	Rectangular	5/8(in) 16(mm)	1.50(in) 38(mm)	12.00(lbs per 1/10in) 21.0(N/mm)
9-1006-119	ROUND SPRG.0.625X1.50-GREEN	Round	5/8(in)	1.50(in)	6.00(lbs per 1/10in)
9-1007-11	SPRG.0.625X 1.75-GREEN	Rectangular	5/8(in) 16(mm)	1.75(in) 44(mm)	10.00(lbs per 1/10in) 17.5(N/mm)
9-1007-119	ROUND SPRG.0.625X1.75-GREEN	Round	5/8(in)	1.75(in)	5.00(lbs per 1/10in)
9-1008-11	SPRG.0.625X 2.00-GREEN	Rectangular	5/8(in) 16(mm)	2.00(in) 51(mm)	9.30(lbs per 1/10in) 16.2(N/mm)
9-1008-119	ROUND SPRG.0.625X2.00-GREEN	Round	5/8(in)	2.00(in)	4.33(lbs per 1/10in)
9-1010-11	SPRG.0.625X 2.50-GREEN	Rectangular	5/8(in) 16(mm)	2.50(in) 64(mm)	7.20(lbs per 1/10in) 12.5(N/mm)
9-1010-119	ROUND SPRG.0.625X2.50-GREEN	Round	5/8(in)	2.50(in)	3.38(lbs per 1/10in)
9-1012-11	SPRG.0.625X 3.00-GREEN	Rectangular	5/8(in) 16(mm)	3.00(in) 76(mm)	5.90(lbs per 1/10in) 10.3(N/mm)
9-1012-119	ROUND SPRG.0.625X3GREEN	Round	5/8(in)	3.00(in)	2.73(lbs per 1/10in)
9-1014-11	SPRG.0.625X 3.50-GREEN	Rectangular	5/8(in) 16(mm)	3.50(in) 89(mm)	5.30(lbs per 1/10in) 9.3(N/mm)
9-1014-119	GRN ROUND SPRG.0.625X3.50-GREEN	Round	5/8(in)	3.50(in)	2.31(lbs per 1/10in)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-1016-11	SPRG.0.625X 4.00-GREEN	Rectangular	5/8(in) 16(mm)	4.00(in) 102(mm)	4.70(lbs per 1/10in) 8.2(N/mm)
9-1016-119	ROUND SPRG.0.625X4GREEN	Round	5/8(in)	4.00(in)	2.01(lbs per 1/10in)
9-1048-11	SPRG.0.625X12.0-GREEN	Rectangular	5/8(in) 16(mm)	12.00(in) 305(mm)	1.50(lbs per 1/10in) 2.6(N/mm)
9-1048-119	ROUND SPRG.0.625X1GREEN	Round	5/8(in)	12.00(in)	0.64(lbs per 1/10in)
9-1204-11	SPRG.0.750X 1.00-GREEN	Rectangular	3/4(in) 20(mm)	1.00(in) 25(mm)	32.00(lbs per 1/10in) 56.0(N/mm)
9-1205-11	SPRG-0.750X 1.25-GREEN	Rectangular	3/4(in) 20(mm)	1.25(in) 32(mm)	24.40(lbs per 1/10in) 42.7(N/mm)
9-1206-11	SPRG.0.750X 1.50-GREEN	Rectangular	3/4(in) 20(mm)	1.50(in) 38(mm)	19.30(lbs per 1/10in) 33.8(N/mm)
9-1207-11	SPRG.0.750X 1.75-GREEN	Rectangular	3/4(in) 20(mm)	1.75(in) 44(mm)	16.20(lbs per 1/10in) 28.4(N/mm)
9-1208-11	SPRG.0.750X 2.00-GREEN	Rectangular	3/4(in) 20(mm)	2.00(in) 51(mm)	14.20(lbs per 1/10in) 24.8(N/mm)
9-1210-11	SPRG.0.750X 2.50-GREEN	Rectangular	3/4(in) 20(mm)	2.50(in) 64(mm)	11.00(lbs per 1/10in) 19.2(N/mm)
9-1212-11	SPRG.0.750X 3.00-GREEN	Rectangular	3/4(in) 20(mm)	3.00(in) 76(mm)	9.20(lbs per 1/10in) 16.1(N/mm)
9-1214-11	SPRG.0.750X 3.50-GREEN	Rectangular	3/4(in) 20(mm)	3.50(in) 89(mm)	7.70(lbs per 1/10in) 13.4(N/mm)
9-1216-11	SPRG.0.750X 4.00-GREEN	Rectangular	3/4(in) 20(mm)	4.00(in) 102(mm)	6.80(lbs per 1/10in) 11.8(N/mm)
9-1218-11	SPRG.0.750X 4.50-GREEN	Rectangular	3/4(in) 20(mm)	4.50(in) 115(mm)	6.00(lbs per 1/10in) 10.5(N/mm)
9-1220-11	SPRG.0.750X 5.00-GREEN	Rectangular	3/4(in) 20(mm)	5.00(in) 127(mm)	5.30(lbs per 1/10in) 9.3(N/mm)
9-1222-11	SPRG.0.750X 5.50-GREEN	Rectangular	3/4(in) 20(mm)	5.50(in) 139(mm)	4.85(lbs per 1/10in) 8.5(N/mm)
9-1224-11	SPRG.0.750X 6.00-GREEN	Rectangular	3/4(in) 20(mm)	6.00(in) 152(mm)	4.50(lbs per 1/10in) 7.9(N/mm)
9-1248-11	SPRG.0.750x12.0-GREEN	Rectangular	3/4(in) 20(mm)	12.00(in) 305(mm)	2.16(lbs per 1/10in) 3.8(N/mm)
9-1604-11	SPRG.1.000X 1.00-GREEN	Rectangular	1(in) 25(mm)	1.00(in) 25(mm)	61.20(lbs per 1/10in) 107.0(N/mm)
9-1605-11	SPRG.1.000X 1.25-GREEN	Rectangular	1(in) 25(mm)	1.25(in) 32(mm)	46.20(lbs per 1/10in) 80.8(N/mm)
9-1606-11	SPRG.1.000X 1.50-GREEN	Rectangular	1(in) 25(mm)	1.50(in) 38(mm)	37.00(lbs per 1/10in) 64.8(N/mm)
9-1607-11	SPRG.1.000X 1.75-GREEN	Rectangular	1(in) 25(mm)	1.75(in) 44(mm)	30.60(lbs per 1/10in) 53.6(N/mm)
9-1608-11	SPRG.1.000X 2.00-GREEN	Rectangular	1(in) 25(mm)	2.00(in) 51(mm)	26.50(lbs per 1/10in) 46.5(N/mm)
9-1610-11	SPRG.1.000X 2.50-GREEN	Rectangular	1(in) 25(mm)	2.50(in) 64(mm)	20.40(lbs per 1/10in) 35.7(N/mm)
9-1612-11	SPRG.1.000X 3.00-GREEN	Rectangular	1(in) 25(mm)	3.00(in) 76(mm)	16.80(lbs per 1/10in) 29.3(N/mm)
9-1614-11	SPRG.1.000X 3.50-GREEN	Rectangular	1(in) 25(mm)	3.50(in) 89(mm)	14.10(lbs per 1/10in) 24.7(N/mm)
9-1616-11	SPRG.1.000X 4.00-GREEN	Rectangular	1(in) 25(mm)	4.00(in) 102(mm)	12.10(lbs per 1/10in) 21.3(N/mm)
9-1618-11	SPRG.1.000X 4.50-GREEN	Rectangular	1(in) 25(mm)	4.50(in) 115(mm)	10.70(lbs per 1/10in) 18.7(N/mm)
9-1620-11	SPRG.1.000X 5.00-GREEN	Rectangular	1(in) 25(mm)	5.00(in) 127(mm)	9.60(lbs per 1/10in) 16.8(N/mm)
9-1622-11	SPRG.1.000X 5.50-GREEN	Rectangular	1(in) 25(mm)	5.50(in) 139(mm)	8.70(lbs per 1/10in) 15.3(N/mm)
9-1624-11	SPRG.1.000X 6.00-GREEN	Rectangular	1(in) 25(mm)	6.00(in) 152(mm)	8.00(lbs per 1/10in) 14.1(N/mm)
9-1628-11	SPRG.1.000X 7.00-GREEN	Rectangular	1(in) 25(mm)	7.00(in) 178(mm)	6.90(lbs per 1/10in) 12.1(N/mm)
9-1632-11	SPRG.1.000X 8.00-GREEN	Rectangular	1(in) 25(mm)	8.00(in) 203(mm)	6.00(lbs per 1/10in) 10.6(N/mm)
9-1648-11	SPRG.1.000x12.0-GREEN	Rectangular	1(in) 25(mm)	12.00(in) 305(mm)	4.00(lbs per 1/10in) 7.0(N/mm)
9-2006-11	SPRG.1.250X 1.50-GREEN	Rectangular	1 1/4(in) 32(mm)	1.50(in) 38(mm)	57.90(lbs per 1/10in) 101.0(N/mm)
9-2007-11	SPRG.1.250X 1.75-GREEN	Rectangular	1 1/4(in) 32(mm)	1.75(in) 44(mm)	47.50(lbs per 1/10in) 83.2(N/mm)
9-2008-11	SPRG.1.250X 2.00-GREEN	Rectangular	1 1/4(in) 32(mm)	2.00(in) 51(mm)	40.70(lbs per 1/10in) 71.3(N/mm)
9-2010-11	SPRG.1.250X 2.50-GREEN	Rectangular	1 1/4(in) 32(mm)	2.50(in) 64(mm)	31.40(lbs per 1/10in) 55.0(N/mm)
9-2012-11	SPRG.1.250X 3.00-GREEN	Rectangular	1 1/4(in) 32(mm)	3.00(in) 76(mm)	26.30(lbs per 1/10in) 46.0(N/mm)
9-2014-11	SPRG.1.250X 3.50-GREEN	Rectangular	1 1/4(in) 32(mm)	3.50(in) 89(mm)	22.20(lbs per 1/10in) 38.8(N/mm)
9-2016-11	SPRG.1.250X 4.00-GREEN	Rectangular	1 1/4(in) 32(mm)	4.00(in) 102(mm)	19.20(lbs per 1/10in) 33.6(N/mm)
9-2018-11	SPRG.1.250X 4.50-GREEN	Rectangular	1 1/4(in) 32(mm)	4.50(in) 115(mm)	16.90(lbs per 1/10in) 29.6(N/mm)
9-2020-11	SPRG.1.250X 5.00-GREEN	Rectangular	1 1/4(in) 32(mm)	5.00(in) 127(mm)	15.00(lbs per 1/10in) 26.3(N/mm)
9-2022-11	SPRG.1.250X 5.50-GREEN	Rectangular	1 1/4(in) 32(mm)	5.50(in) 139(mm)	13.50(lbs per 1/10in) 23.6(N/mm)
9-2024-11	SPRG.1.250X 6.00-GREEN	Rectangular	1 1/4(in) 32(mm)	6.00(in) 152(mm)	12.30(lbs per 1/10in) 21.6(N/mm)
9-2028-11	SPRG.1.250X 7.00-GREEN	Rectangular	1 1/4(in) 32(mm)	7.00(in) 178(mm)	10.40(lbs per 1/10in) 18.3(N/mm)
9-2032-11	SPRG.1.250X 8.00-GREEN	Rectangular	1 1/4(in) 32(mm)	8.00(in) 203(mm)	9.10(lbs per 1/10in) 15.9(N/mm)
9-2040-11	SPRG.1.250x10.0-GREEN	Rectangular	1 1/4(in) 32(mm)	10.00(in) 254(mm)	7.20(lbs per 1/10in) 12.5(N/mm)
9-2048-11	SPRG.1.250x12.0-GREEN	Rectangular	1 1/4(in) 32(mm)	12.00(in) 305(mm)	5.90(lbs per 1/10in) 10.4(N/mm)
9-2408-11	SPRG.1.500X 2.00-GREEN	Rectangular	1 1/2(in) 40(mm)	2.00(in) 51(mm)	60.30(lbs per 1/10in) 106.0(N/mm)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-2410-11	SPRG.1.500X 2.50-GREEN	Rectangular	1 1/2(in) 40(mm)	2.50(in) 64(mm)	45.80(lbs per 1/10in) 80.2(N/mm)
9-2412-11	SPRG.1.500X 3.00-GREEN	Rectangular	1 1/2(in) 40(mm)	3.00(in) 76(mm)	37.50(lbs per 1/10in) 65.7(N/mm)
9-2414-11	SPRG.1.500X 3.50-GREEN	Rectangular	1 1/2(in) 40(mm)	3.50(in) 89(mm)	31.80(lbs per 1/10in) 55.7(N/mm)
9-2416-11	SPRG.1.500X 4.00-GREEN	Rectangular	1 1/2(in) 40(mm)	4.00(in) 102(mm)	27.30(lbs per 1/10in) 47.7(N/mm)
9-2418-11	SPRG.1.500X 4.50-GREEN	Rectangular	1 1/2(in) 40(mm)	4.50(in) 115(mm)	24.10(lbs per 1/10in) 42.2(N/mm)
9-2420-11	SPRG.1.500X 5.00-GREEN	Rectangular	1 1/2(in) 40(mm)	5.00(in) 127(mm)	21.60(lbs per 1/10in) 37.8(N/mm)
9-2422-11	SPRG.1.500X 5.50-GREEN	Rectangular	1 1/2(in) 40(mm)	5.50(in) 139(mm)	19.40(lbs per 1/10in) 34.0(N/mm)
9-2424-11	SPRG.1.500X 6.00-GREEN	Rectangular	1 1/2(in) 40(mm)	6.00(in) 152(mm)	17.60(lbs per 1/10in) 30.8(N/mm)
9-2428-11	SPRG.1.500X 7.00-GREEN	Rectangular	1 1/2(in) 40(mm)	7.00(in) 178(mm)	15.00(lbs per 1/10in) 26.2(N/mm)
9-2432-11	SPRG.1.500X 8.00-GREEN	Rectangular	1 1/2(in) 40(mm)	8.00(in) 203(mm)	12.90(lbs per 1/10in) 22.6(N/mm)
9-2440-11	SPRG.1.500x10.0-GREEN	Rectangular	1 1/2(in) 40(mm)	10.00(in) 254(mm)	10.30(lbs per 1/10in) 18.0(N/mm)
9-2448-11	SPRG.1.500x12.0-GREEN	Rectangular	1 1/2(in) 40(mm)	12.00(in) 305(mm)	8.40(lbs per 1/10in) 14.8(N/mm)
9-3210-11	SPRG.2.000X 2.50-GREEN	Rectangular	2(in) 50(mm)	2.50(in) 64(mm)	89.90(lbs per 1/10in) 157.0(N/mm)
9-3212-11	SPRG.2.000X 3.00-GREEN	Rectangular	2(in) 50(mm)	3.00(in) 76(mm)	72.00(lbs per 1/10in) 126.0(N/mm)
9-3214-11	SPRG.2.000X 3.50-GREEN	Rectangular	2(in) 50(mm)	3.50(in) 89(mm)	60.20(lbs per 1/10in) 108.0(N/mm)
9-3216-11	SPRG.2.000X 4.00-GREEN	Rectangular	2(in) 50(mm)	4.00(in) 102(mm)	51.20(lbs per 1/10in) 89.7(N/mm)
9-3218-11	SPRG.2.000X 4.50-GREEN	Rectangular	2(in) 50(mm)	4.50(in) 115(mm)	44.90(lbs per 1/10in) 78.6(N/mm)
9-3220-11	SPRG.2.000X 5.00-GREEN	Rectangular	2(in) 50(mm)	5.00(in) 127(mm)	40.00(lbs per 1/10in) 70.0(N/mm)
9-3222-11	SPRG.2.000X 5.50-GREEN	Rectangular	2(in) 50(mm)	5.50(in) 139(mm)	36.00(lbs per 1/10in) 63.1(N/mm)
9-3224-11	SPRG.2.000X 6.00-GREEN	Rectangular	2(in) 50(mm)	6.00(in) 152(mm)	32.80(lbs per 1/10in) 57.4(N/mm)
9-3228-11	SPRG.2.000X 7.00-GREEN	Rectangular	2(in) 50(mm)	7.00(in) 178(mm)	27.80(lbs per 1/10in) 48.7(N/mm)
9-3232-11	SPRG.2.000X 8.00-GREEN	Rectangular	2(in) 50(mm)	8.00(in) 203(mm)	23.80(lbs per 1/10in) 41.6(N/mm)
9-3240-11	SPRG.2.000x10.0-GREEN	Rectangular	2(in) 50(mm)	10.00(in) 254(mm)	18.80(lbs per 1/10in) 33.0(N/mm)
9-3248-11	SPRG.2.000x12.0-GREEN	Rectangular	2(in) 50(mm)	12.00(in) 305(mm)	15.50(lbs per 1/10in) 27.2(N/mm)
9-4012-11	SPRG.2.500X 3.00-GREEN	Rectangular	2 1/2(in) 63(mm)	3.00(in) 76(mm)	110.00(lbs per 1/10in) 192.0(N/mm)
9-4014-11	SPRG.2.500X 3.50-GREEN	Rectangular	2 1/2(in) 63(mm)	3.50(in) 89(mm)	89.90(lbs per 1/10in) 157.0(N/mm)
9-4016-11	SPRG.2.500X 4.00-GREEN	Rectangular	2 1/2(in) 63(mm)	4.00(in) 102(mm)	76.20(lbs per 1/10in) 133.0(N/mm)
9-4018-11	SPRG.2.500X 4.50-GREEN	Rectangular	2 1/2(in) 63(mm)	4.50(in) 115(mm)	66.00(lbs per 1/10in) 116.0(N/mm)
9-4020-11	SPRG.2.500X 5.00-GREEN	Rectangular	2 1/2(in) 63(mm)	5.00(in) 127(mm)	58.80(lbs per 1/10in) 103.0(N/mm)
9-4024-11	SPRG.2.500X 6.00-GREEN	Rectangular	2 1/2(in) 63(mm)	6.00(in) 152(mm)	47.60(lbs per 1/10in) 83.4(N/mm)
9-4028-11	SPRG.2.500X 7.00-GREEN	Rectangular	2 1/2(in) 63(mm)	7.00(in) 178(mm)	40.00(lbs per 1/10in) 70.0(N/mm)
9-4032-11	SPRG.2.500X 8.00-GREEN	Rectangular	2 1/2(in) 63(mm)	8.00(in) 203(mm)	34.40(lbs per 1/10in) 60.3(N/mm)
9-4040-11	SPRG.2.500x10.0-GREEN	Rectangular	2 1/2(in) 63(mm)	10.00(in) 254(mm)	26.70(lbs per 1/10in) 46.8(N/mm)
9-4048-11	SPRG.2.500x12.0-GREEN	Rectangular	2 1/2(in) 63(mm)	12.00(in) 305(mm)	22.00(lbs per 1/10in) 38.6(N/mm)

DieMax XL Springs: Medium Load (Blue)

Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-0604-21	SPRG.0.375X1.00-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	1.00(in) 25(mm)	9.30(lbs per 1/10in) 16.2(N/mm)
9-0604-219	RNDSPRG.0.375X1.00-BLUE-MED-HI	Round	3/8(in)	1.00(in)	7.00(lbs per 1/10in)
9-0605-21	SPRG.0.375X1.25-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	1.25(in) 32(mm)	8.00(lbs per 1/10in) 14.0(N/mm)
9-0606-21	SPRG.0.375X1.50-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	1.50(in) 38(mm)	6.70(lbs per 1/10in) 11.7(N/mm)
9-0606-219	RNDSPRG.0.375X1.50-BLUE-MED-HI	Round	3/8(in)	1.50(in)	4.43(lbs per 1/10in)
9-0607-21	SPRG.0.375X1.75-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	1.75(in) 44(mm)	5.60(lbs per 1/10in) 9.9(N/mm)
9-0607-219	RNDSPRG.0.375X1.75-BLUE-MED-HI	Round	3/8(in)	1.75(in)	3.73(lbs per 1/10in)
9-0608-21	SPRG.0.375X2.00-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	2.00(in) 51(mm)	4.92(lbs per 1/10in) 8.6(N/mm)
9-0608-219	RNDSPRG.0.375X2.00-BLUE-MED-HI	Round	3/8(in)	1.25(in)	5.40(lbs per 1/10in)
9-0610-21	SPRG.0.375X2.50-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	2.50(in) 64(mm)	3.87(lbs per 1/10in) 6.8(N/mm)
9-0610-219	RNDSPRG.0.375X2.50-BLUE-MED-HI	Round	3/8(in)	2.50(in)	2.55(lbs per 1/10in)
9-0612-21	SPRG.0.375X3.00-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	3.00(in) 76(mm)	3.25(lbs per 1/10in) 5.7(N/mm)
9-0612-219	RNDSPRG.0.375X3.00-BLUE-MED-HI	Round	3/8(in)	3.00(in)	2.10(lbs per 1/10in)
9-0648-21	SPRG.0.375X12.0-BLUE-MED-HIGH	Rectangular	3/8(in) 10(mm)	12.00(in) 305(mm)	0.76(lbs per 1/10in) 1.3(N/mm)
9-0648-219	RNDSPRG.0.375X12.0-BLUE-MED-HI	Round	3/8(in)	12.00(in)	0.51(lbs per 1/10in)
9-0804-21	SPRG.0.500X1.00-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	1.00(in) 25(mm)	16.50(lbs per 1/10in) 28.9(N/mm)
9-0804-219	RNDSPRG.0.500X1.00-BLUE-MED-HI	Round	1/2(in)	1.00(in)	12.40(lbs per 1/10in)
9-0805-21	SPRG.0.500X1.25-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	1.25(in) 32(mm)	12.90(lbs per 1/10in) 22.7(N/mm)
9-0805-219	RNDSPRG.0.500X1.25-BLUE-MED-HI	Round	1/2(in)	1.25(in)	9.60(lbs per 1/10in)
9-0806-21	SPRG.0.500X1.50-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	1.50(in) 38(mm)	10.90(lbs per 1/10in) 19.1(N/mm)
9-0806-219	RNDSPRG.0.500X1.50-BLUE-MED-HI	Round	1/2(in)	1.50(in)	7.90(lbs per 1/10in)
9-0807-21	SPRG.0.500X1.75-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	1.75(in) 44(mm)	9.20(lbs per 1/10in) 16.0(N/mm)
9-0807-219	RNDSPRG.0.500X1.75-BLUE-MED-HI	Round	1/2(in)	1.75(in)	6.60(lbs per 1/10in)
9-0808-21	SPRG.0.500X2.00-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	2.00(in) 51(mm)	8.00(lbs per 1/10in) 14.1(N/mm)
9-0808-219	RNDSPRG.0.500X2.00-BLUE-MED-HI	Round	1/2(in)	2.00(in)	5.70(lbs per 1/10in)
9-0810-21	SPRG.0.500X2.50-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	2.50(in) 64(mm)	6.30(lbs per 1/10in) 11.0(N/mm)
9-0810-219	RNDSPRG.0.500X2.50-BLUE-MED-HI	Round	1/2(in)	2.50(in)	4.45(lbs per 1/10in)
9-0812-21	SPRG.0.500X3.00-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	3.00(in) 76(mm)	5.00(lbs per 1/10in) 8.7(N/mm)
9-0812-219	RNDSPRG.0.500X3.00-BLUE-MED-HI	Round	1/2(in)	3.00(in)	3.66(lbs per 1/10in)
9-0814-21	SPRG.0.500X3.50-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	3.50(in) 89(mm)	4.27(lbs per 1/10in) 7.5(N/mm)
9-0814-219	RNDSPRG.0.500X3.50-BLUE-MED-HI	Round	1/2(in)	3.50(in)	3.21(lbs per 1/10in)
9-0848-21	SPRG.0.500x12.0-BLUE-MED-HIGH	Rectangular	1/2(in) 12.5(mm)	12.00(in) 305(mm)	1.24(lbs per 1/10in) 2.2(N/mm)
9-0848-219	RNDSPRG.0.500x12.0-BLUE-MED-HI	Round	1/2(in)	12.00(in)	0.88(lbs per 1/10in)
9-1004-21	SPRG.0.625X1.00-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	1.00(in) 25(mm)	31.80(lbs per 1/10in) 55.6(N/mm)
9-1004-219	RNDSPRG.0.625X1.00-BLUE-MED-HI	Round	5/8(in)	1.00(in)	18.20(lbs per 1/10in)
9-1005-21	SPRG.0.625X1.25-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	1.25(in) 32(mm)	23.00(lbs per 1/10in) 40.3(N/mm)
9-1005-219	RNDSPRG.0.625X1.25-BLUE-MED-HI	Round	5/8(in)	1.25(in)	13.70(lbs per 1/10in)
9-1006-21	SPRG.0.625X1.50-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	1.50(in) 38(mm)	20.10(lbs per 1/10in) 35.2(N/mm)
9-1006-219	RNDSPRG.0.625X1.50-BLUE-MED-HI	Round	5/8(in)	1.50(in)	11.10(lbs per 1/10in)
9-1007-21	SPRG.0.625X1.75-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	1.75(in) 44(mm)	17.40(lbs per 1/10in) 30.5(N/mm)
9-1007-219	RNDSPRG.0.625X1.75-BLUE-MED-HI	Round	5/8(in)	1.75(in)	9.20(lbs per 1/10in)
9-1008-21	SPRG.0.625X2.00-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	2.00(in) 51(mm)	15.40(lbs per 1/10in) 26.9(N/mm)
9-1008-219	RNDSPRG.0.625X2.00-BLUE-MED-HI	Round	5/8(in)	2.00(in)	7.90(lbs per 1/10in)
9-1010-21	SPRG.0.625X2.50-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	2.50(in) 64(mm)	12.00(lbs per 1/10in) 21.0(N/mm)
9-1010-219	RNDSPRG.0.625X2.50-BLUE-MED-HI	Round	5/8(in)	2.50(in)	6.10(lbs per 1/10in)
9-1012-21	SPRG.0.625X3.00-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	3.00(in) 76(mm)	10.10(lbs per 1/10in) 17.8(N/mm)
9-1012-219	RNDSPRG.0.625X3.00-BLUE-MED-HI	Round	5/8(in)	3.00(in)	5.00(lbs per 1/10in)
9-1014-21	SPRG.0.625X3.50-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	3.50(in) 89(mm)	8.70(lbs per 1/10in) 15.2(N/mm)
9-1014-219	RNDSPRG.0.625X3.50-BLUE-MED-HI	Round	5/8(in)	3.50(in)	4.28(lbs per 1/10in)
9-1016-21	SPRG.0.625X4.00-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	4.00(in) 102(mm)	7.60(lbs per 1/10in) 13.2(N/mm)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-1016-219	RNDSPRG.0.625X4.00-BLUE-MED-HI	Round	5/8(in)	4.00(in)	3.73(lbs per 1/10in)
9-1048-21	SPRG.0.625X12.0-BLUE-MED-HIGH	Rectangular	5/8(in) 16(mm)	12.00(in) 305(mm)	2.36(lbs per 1/10in) 4.1(N/mm)
9-1048-219	RNDSPRG.0.625X12.0-BLUE-MED-HI	Round	5/8(in)	12.00(in)	1.19(lbs per 1/10in)
9-1204-21	SPRG.0.750X1.00-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	1.00(in) 25(mm)	51.50(lbs per 1/10in) 90.2(N/mm)
9-1205-21	SPRG.0.750X1.25-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	1.25(in) 32(mm)	38.90(lbs per 1/10in) 68.1(N/mm)
9-1206-21	SPRG.0.750X1.50-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	1.50(in) 38(mm)	31.30(lbs per 1/10in) 54.8(N/mm)
9-1207-21	SPRG.0.750X1.75-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	1.75(in) 44(mm)	25.80(lbs per 1/10in) 45.1(N/mm)
9-1208-21	SPRG.0.750X2.00-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	2.00(in) 51(mm)	22.20(lbs per 1/10in) 38.8(N/mm)
9-1210-21	SPRG.0.750X2.50-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	2.50(in) 64(mm)	17.30(lbs per 1/10in) 30.3(N/mm)
9-1212-21	SPRG.0.750X3.00-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	3.00(in) 76(mm)	14.10(lbs per 1/10in) 24.7(N/mm)
9-1214-21	SPRG.0.750X3.50-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	3.50(in) 89(mm)	12.20(lbs per 1/10in) 21.3(N/mm)
9-1216-21	SPRG.0.750X4.00-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	4.00(in) 102(mm)	10.60(lbs per 1/10in) 18.6(N/mm)
9-1218-21	SPRG.0.750X4.50-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	4.50(in) 115(mm)	9.30(lbs per 1/10in) 16.3(N/mm)
9-1220-21	SPRG.0.750X5.00-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	5.00(in) 127(mm)	8.30(lbs per 1/10in) 14.6(N/mm)
9-1222-21	SPRG.0.750X5.50-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	5.50(in) 139(mm)	7.50(lbs per 1/10in) 13.2(N/mm)
9-1224-21	SPRG.0.750X6.00-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	6.00(in) 152(mm)	6.90(lbs per 1/10in) 12.1(N/mm)
9-1248-21	SPRG.0.750x12.0-BLUE-MED-HIGH	Rectangular	3/4(in) 20(mm)	12.00(in) 305(mm)	3.46(lbs per 1/10in) 6.1(N/mm)
9-1604-21	SPRG.1.000X1.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	1.00(in) 25(mm)	94.90(lbs per 1/10in) 166.0(N/mm)
9-1605-21	SPRG.1.000X1.25-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	1.25(in) 32(mm)	71.20(lbs per 1/10in) 125.0(N/mm)
9-1606-21	SPRG.1.000X1.50-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	1.50(in) 38(mm)	56.30(lbs per 1/10in) 98.6(N/mm)
9-1607-21	SPRG.1.000X1.75-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	1.75(in) 44(mm)	47.50(lbs per 1/10in) 83.1(N/mm)
9-1608-21	SPRG.1.000X2.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	2.00(in) 51(mm)	41.00(lbs per 1/10in) 71.8(N/mm)
9-1610-21	SPRG.1.000X2.50-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	2.50(in) 64(mm)	31.40(lbs per 1/10in) 55.1(N/mm)
9-1612-21	SPRG.1.000X3.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	3.00(in) 76(mm)	25.80(lbs per 1/10in) 45.1(N/mm)
9-1614-21	SPRG.1.000X3.50-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	3.50(in) 89(mm)	21.60(lbs per 1/10in) 37.9(N/mm)
9-1616-21	SPRG.1.000X4.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	4.00(in) 102(mm)	18.80(lbs per 1/10in) 32.9(N/mm)
9-1618-21	SPRG.1.000X4.50-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	4.50(in) 115(mm)	16.70(lbs per 1/10in) 29.2(N/mm)
9-1620-21	SPRG.1.000X5.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	5.00(in) 127(mm)	15.00(lbs per 1/10in) 26.2(N/mm)
9-1622-21	SPRG.1.000X5.50-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	5.50(in) 139(mm)	13.50(lbs per 1/10in) 23.7(N/mm)
9-1624-21	SPRG.1.000X6.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	6.00(in) 152(mm)	12.40(lbs per 1/10in) 21.6(N/mm)
9-1628-21	SPRG.1.000X7.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	7.00(in) 178(mm)	10.50(lbs per 1/10in) 18.4(N/mm)
9-1632-21	SPRG.1.000X8.00-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	8.00(in) 203(mm)	9.10(lbs per 1/10in) 15.9(N/mm)
9-1648-21	SPRG.1.000x12.0-BLUE-MED-HIGH	Rectangular	1(in) 25(mm)	12.00(in) 305(mm)	6.00(lbs per 1/10in) 10.4(N/mm)
9-2006-21	SPRG.1.250X1.50-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	1.50(in) 38(mm)	94.80(lbs per 1/10in) 166.0(N/mm)
9-2007-21	SPRG.1.250X1.75-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	1.75(in) 44(mm)	77.90(lbs per 1/10in) 136.0(N/mm)
9-2008-21	SPRG.1.250X2.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	2.00(in) 51(mm)	66.30(lbs per 1/10in) 116.0(N/mm)
9-2010-21	SPRG.1.250X2.50-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	2.50(in) 64(mm)	50.10(lbs per 1/10in) 87.7(N/mm)
9-2012-21	SPRG.1.250X3.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	3.00(in) 76(mm)	40.50(lbs per 1/10in) 71.0(N/mm)
9-2014-21	SPRG.1.250X3.50-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	3.50(in) 89(mm)	34.20(lbs per 1/10in) 59.9(N/mm)
9-2016-21	SPRG.1.250X4.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	4.00(in) 102(mm)	29.60(lbs per 1/10in) 51.9(N/mm)
9-2018-21	SPRG.1.250X4.50-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	4.50(in) 115(mm)	26.30(lbs per 1/10in) 46.1(N/mm)
9-2020-21	SPRG.1.250X5.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	5.00(in) 127(mm)	23.70(lbs per 1/10in) 41.5(N/mm)
9-2022-21	SPRG.1.250X5.50-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	5.50(in) 139(mm)	21.70(lbs per 1/10in) 37.5(N/mm)
9-2024-21	SPRG.1.250X6.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	6.00(in) 152(mm)	19.50(lbs per 1/10in) 34.1(N/mm)
9-2028-21	SPRG.1.250X7.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	7.00(in) 178(mm)	16.60(lbs per 1/10in) 29.0(N/mm)
9-2032-21	SPRG.1.250X8.00-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	8.00(in) 203(mm)	14.40(lbs per 1/10in) 25.2(N/mm)
9-2040-21	SPRG.1.250x10.0-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	10.00(in) 254(mm)	11.40(lbs per 1/10in) 20.0(N/mm)
9-2048-21	SPRG.1.250x12.0-BLUE-MED-HIGH	Rectangular	1 1/4(in) 32(mm)	12.00(in) 305(mm)	9.50(lbs per 1/10in) 16.6(N/mm)
9-2408-21	SPRG.1.500X2.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	2.00(in) 51(mm)	97.40(lbs per 1/10in) 170.0(N/mm)
9-2410-21	SPRG.1.500X2.50-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	2.50(in) 64(mm)	73.50(lbs per 1/10in) 129.0(N/mm)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-2412-21	SPRG.1.500X3.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	3.00(in) 76(mm)	60.10(lbs per 1/10in) 105.0(N/mm)
9-2414-21	SPRG.1.500X3.50-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	3.50(in) 89(mm)	50.10(lbs per 1/10in) 87.7(N/mm)
9-2416-21	SPRG.1.500X4.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	4.00(in) 102(mm)	43.40(lbs per 1/10in) 76.0(N/mm)
9-2418-21	SPRG.1.500X4.50-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	4.50(in) 115(mm)	37.90(lbs per 1/10in) 66.4(N/mm)
9-2420-21	SPRG.1.500X5.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	5.00(in) 127(mm)	34.00(lbs per 1/10in) 59.6(N/mm)
9-2422-21	SPRG.1.500X5.50-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	5.50(in) 139(mm)	30.60(lbs per 1/10in) 53.5(N/mm)
9-2424-21	SPRG.1.500X6.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	6.00(in) 152(mm)	27.90(lbs per 1/10in) 48.9(N/mm)
9-2428-21	SPRG.1.500X7.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	7.00(in) 178(mm)	23.70(lbs per 1/10in) 41.5(N/mm)
9-2432-21	SPRG.1.500X8.00-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	8.00(in) 203(mm)	20.60(lbs per 1/10in) 36.1(N/mm)
9-2440-21	SPRG.1.500x10.0-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	10.00(in) 254(mm)	16.50(lbs per 1/10in) 28.8(N/mm)
9-2448-21	SPRG.1.500x12.0-BLUE-MED-HIGH	Rectangular	1 1/2(in) 40(mm)	12.00(in) 305(mm)	13.60(lbs per 1/10in) 23.7(N/mm)
9-3210-21	SPRG.2.000X2.50-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	2.50(in) 64(mm)	121.00(lbs per 1/10in) 212.0(N/mm)
9-3212-21	SPRG.2.000X3.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	3.00(in) 76(mm)	95.60(lbs per 1/10in) 167.0(N/mm)
9-3214-21	SPRG.2.000X3.50-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	3.50(in) 89(mm)	79.80(lbs per 1/10in) 140.0(N/mm)
9-3216-21	SPRG.2.000X4.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	4.00(in) 102(mm)	69.60(lbs per 1/10in) 122.0(N/mm)
9-3218-21	SPRG.2.000X4.50-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	4.50(in) 115(mm)	61.20(lbs per 1/10in) 107.0(N/mm)
9-3220-21	SPRG.2.000X5.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	5.00(in) 127(mm)	54.00(lbs per 1/10in) 94.5(N/mm)
9-3222-21	SPRG.2.000X5.50-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	5.50(in) 139(mm)	48.80(lbs per 1/10in) 85.5(N/mm)
9-3224-21	SPRG.2.000X6.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	6.00(in) 152(mm)	44.50(lbs per 1/10in) 78.0(N/mm)
9-3228-21	SPRG.2.000X7.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	7.00(in) 178(mm)	37.90(lbs per 1/10in) 66.4(N/mm)
9-3232-21	SPRG.2.000X8.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	8.00(in) 203(mm)	32.80(lbs per 1/10in) 57.4(N/mm)
9-3236-21	SPRG.2.000X9.00-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	9.00(in) 229(mm)	29.10(lbs per 1/10in) 50.9(N/mm)
9-3240-21	SPRG.2.000x10.0-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	10.00(in) 254(mm)	26.10(lbs per 1/10in) 45.7(N/mm)
9-3248-21	SPRG.2.000x12.0-BLUE-MED-HIGH	Rectangular	2(in) 50(mm)	12.00(in) 305(mm)	21.50(lbs per 1/10in) 37.7(N/mm)
9-4012-21	SPRG.2.500X3.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	3.00(in) 76(mm)	174.00(lbs per 1/10in) 304.0(N/mm)
9-4014-21	SPRG.2.500X3.50-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	3.50(in) 89(mm)	143.00(lbs per 1/10in) 250.0(N/mm)
9-4016-21	SPRG.2.500X4.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	4.00(in) 102(mm)	121.00(lbs per 1/10in) 212.0(N/mm)
9-4018-21	SPRG.2.500X4.50-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	4.50(in) 115(mm)	106.00(lbs per 1/10in) 186.0(N/mm)
9-4020-21	SPRG.2.500X5.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	5.00(in) 127(mm)	93.70(lbs per 1/10in) 164.0(N/mm)
9-4024-21	SPRG.2.500X6.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	6.00(in) 152(mm)	75.90(lbs per 1/10in) 133.0(N/mm)
9-4028-21	SPRG.2.500X7.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	7.00(in) 178(mm)	63.80(lbs per 1/10in) 112.0(N/mm)
9-4032-21	SPRG.2.500X8.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	8.00(in) 203(mm)	55.00(lbs per 1/10in) 96.3(N/mm)
9-4036-21	SPRG.2.500X9.00-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	9.00(in) 229(mm)	48.80(lbs per 1/10in) 85.5(N/mm)
9-4040-21	SPRG.2.500x10.0-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	10.00(in) 254(mm)	43.90(lbs per 1/10in) 76.8(N/mm)
9-4048-21	SPRG.2.500x12.0-BLUE-MED-HIGH	Rectangular	2 1/2(in) 63(mm)	12.00(in) 305(mm)	36.20(lbs per 1/10in) 63.5(N/mm

DieMax XL Springs: Heavy Load (Red)

Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-0604-26	SPRG.0.375X1.00-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	1.00(in) 25(mm)	12.60(lbs per 1/10in) 22.1(N/mm)
9-0604-269	RNDSPRG.0.375X1.00-RED-HVYDUTY	Round	3/8(in)	1.00(in)	11.80(lbs per 1/10in)
9-0605-26	SPRG.0.375X1.25-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	1.25(in) 32(mm)	10.00(lbs per 1/10in) 17.5(N/mm)
9-0605-269	RNDSPRG.0.375X1.25-RED-HVYDUTY	Round	3/8(in)	1.25(in)	9.20(lbs per 1/10in)
9-0606-26	SPRG.0.375X1.50-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	1.50(in) 38(mm)	9.30(lbs per 1/10in) 16.3(N/mm)
9-0606-269	RNDSPRG.0.375X1.50-RED-HVYDUTY	Round	3/8(in)	1.50(in)	7.40(lbs per 1/10in)
9-0607-26	SPRG.0.375X1.75-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	1.75(in) 44(mm)	8.00(lbs per 1/10in) 14.0(N/mm)
9-0607-269	RNDSPRG.0.375X1.75-RED-HVYDUTY	Round	3/8(in)	1.75(in)	6.20(lbs per 1/10in)
9-0608-26	SPRG.0.375X2.00-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	2.00(in) 51(mm)	6.80(lbs per 1/10in) 12.0(N/mm)
9-0608-269	RNDSPRG.0.375X2.00-RED-HVYDUTY	Round	3/8(in)	2.00(in)	5.50(lbs per 1/10in)
9-0610-26	SPRG.0.375X2.50-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	2.50(in) 64(mm)	5.50(lbs per 1/10in) 9.6(N/mm)
9-0610-269	RNDSPRG.0.375X2.50-RED-HVYDUTY	Round	3/8(in)	2.50(in)	4.38(lbs per 1/10in)
9-0612-26	SPRG.0.375X3.00-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	3.00(in) 76(mm)	4.34(lbs per 1/10in) 7.6(N/mm)
9-0612-269	RNDSPRG.0.375X3.00-RED-HVYDUTY	Round	3/8(in)	3.00(in)	3.59(lbs per 1/10in)
9-0648-26	SPRG.0.375X12.0-RED-HVY-DUTY	Rectangular	3/8(in) 10(mm)	12.00(in) 305(mm)	1.07(lbs per 1/10in) 1.9(N/mm)
9-0648-269	RNDSPRG.0.375X12.0-RED-HVYDUTY	Round	3/8(in)	12.00(in)	0.87(lbs per 1/10in)
9-0804-26	SPRG.0.500X1.00-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	1.00(in) 25(mm)	23.60(lbs per 1/10in) 41.3(N/mm)
9-0804-269	RNDSPRG.0.500X1.00-RED-HVYDUTY	Round	1/2(in)	1.00(in)	21.40(lbs per 1/10in)
9-0805-26	SPRG.0.500X1.25-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	1.25(in) 32(mm)	18.80(lbs per 1/10in) 32.9(N/mm)
9-0805-269	RNDSPRG.0.500X1.25-RED-HVYDUTY	Round	1/2(in)	1.25(in)	16.50(lbs per 1/10in)
9-0806-26	SPRG.0.500X1.50-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	1.50(in) 38(mm)	15.50(lbs per 1/10in) 27.2(N/mm)
9-0806-269	RNDSPRG.0.500X1.50-RED-HVYDUTY	Round	1/2(in)	1.50(in)	13.40(lbs per 1/10in)
9-0807-26	SPRG.0.500X1.75-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	1.75(in) 44(mm)	13.30(lbs per 1/10in) 23.3(N/mm)
9-0807-269	RNDSPRG.0.500X1.75-RED-HVYDUTY	Round	1/2(in)	1.75(in)	11.20(lbs per 1/10in)
9-0808-26	SPRG.0.500X2.00-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	2.00(in) 51(mm)	11.40(lbs per 1/10in) 20.0(N/mm)
9-0808-269	RNDSPRG.0.500X2.00-RED-HVYDUTY	Round	1/2(in)	2.00(in)	9.90(lbs per 1/10in)
9-0810-26	SPRG.0.500X2.50-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	2.50(in) 64(mm)	8.70(lbs per 1/10in) 15.2(N/mm)
9-0810-269	RNDSPRG.0.500X2.50-RED-HVYDUTY	Round	1/2(in)	2.50(in)	7.70(lbs per 1/10in)
9-0812-26	SPRG.0.500X3.00-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	3.00(in) 76(mm)	7.70(lbs per 1/10in) 13.6(N/mm)
9-0812-269	RNDSPRG.0.500X3.00-RED-HVYDUTY	Round	1/2(in)	3.00(in)	6.40(lbs per 1/10in)
9-0814-26	SPRG.0.500X3.50-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	3.50(in) 89(mm)	6.20(lbs per 1/10in) 10.9(N/mm)
9-0814-269	RNDSPRG.0.500X3.50-RED-HVYDUTY	Round	1/2(in)	3.50(in)	5.40(lbs per 1/10in)
9-0848-26	SPRG.0.500x12.0-RED-HVY-DUTY	Rectangular	1/2(in) 12.5(mm)	12.00(in) 305(mm)	1.77(lbs per 1/10in) 3.1(N/mm)
9-0848-269	RNDSPRG.0.500x12.0-RED-HVYDUTY	Round	1/2(in)	12.00(in)	1.52(lbs per 1/10in)
9-1004-26	SPRG.0.625X1.00-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	1.00(in) 25(mm)	43.10(lbs per 1/10in) 75.5(N/mm)
9-1004-269	RNDSPRG.0.625X1.00-RED-HVYDUTY	Round	5/8(in)	1.00(in)	46.60(lbs per 1/10in)
9-1005-26	SPRG.0.625X1.25-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	1.25(in) 32(mm)	24.80(lbs per 1/10in) 60.9(N/mm)
9-1005-269	RNDSPRG.0.625X1.25-RED-HVYDUTY	Round	5/8(in)	1.25(in)	35.00(lbs per 1/10in)
9-1006-26	SPRG.0.625X1.50-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	1.50(in) 38(mm)	27.80(lbs per 1/10in) 48.7(N/mm)
9-1006-269	RNDSPRG.0.625X1.50-RED-HVYDUTY	Round	5/8(in)	1.50(in)	28.50(lbs per 1/10in)
9-1007-26	SPRG.0.625X1.75-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	1.75(in) 44(mm)	24.70(lbs per 1/10in) 43.3(N/mm)
9-1007-269	RNDSPRG.0.625X1.75-RED-HVYDUTY	Round	5/8(in)	1.75(in)	23.30(lbs per 1/10in)
9-1008-26	SPRG.0.625X2.00-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	2.00(in) 51(mm)	20.50(lbs per 1/10in) 36.0(N/mm)
9-1008-269	RNDSPRG.0.625X2.00-RED-HVYDUTY	Round	5/8(in)	2.00(in)	20.30(lbs per 1/10in)
9-1010-26	SPRG.0.625X2.50-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	2.50(in) 64(mm)	16.50(lbs per 1/10in) 28.9(N/mm)
9-1010-269	RNDSPRG.0.625X2.50-RED-HVYDUTY	Round	5/8(in)	2.50(in)	15.90(lbs per 1/10in)
9-1012-26	SPRG.0.625X3.00-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	3.00(in) 76(mm)	14.00(lbs per 1/10in) 24.5(N/mm)
9-1012-269	RNDSPRG.0.625X3.00-RED-HVYDUTY	Round	5/8(in)	3.00(in)	13.00(lbs per 1/10in)
9-1014-26	SPRG.0.625X3.50-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	3.50(in) 89(mm)	11.90(lbs per 1/10in) 20.9(N/mm)
9-1014-269	RNDSPRG.0.625X3.50-RED-HVYDUTY	Round	5/8(in)	3.50(in)	11.20(lbs per 1/10in)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-1016-26	SPRG.0.625X4.00-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	4.00(in) 102(mm)	10.40(lbs per 1/10in) 18.2(N/mm)
9-1016-269	RNDSPRG.0.625X4.00-RED-HVYDUTY	Round	5/8(in)	4.00(in)	9.70(lbs per 1/10in)
9-1048-26	SPRG.0.625X12.0-RED-HVY-DUTY	Rectangular	5/8(in) 16(mm)	12.00(in) 305(mm)	3.33(lbs per 1/10in) 5.8(N/mm)
9-1048-269	RNDSPRG.0.625X12.0-RED-HVYDUTY	Round	5/8(in)	12.00(in)	3.09(lbs per 1/10in)
9-1204-26	SPRG.0.750X1.00-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	1.00(in) 25(mm)	137.00(lbs per 1/10in) 240.0(N/mm)
9-1205-26	SPRG.0.750X1.25-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	1.25(in) 32(mm)	103.00(lbs per 1/10in) 180.0(N/mm)
9-1206-26	SPRG.0.750X1.50-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	1.50(in) 38(mm)	82.20(lbs per 1/10in) 144.0(N/mm)
9-1207-26	SPRG.0.750X1.75-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	1.75(in) 44(mm)	68.50(lbs per 1/10in) 120.0(N/mm)
9-1208-26	SPRG.0.750X2.00-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	2.00(in) 51(mm)	57.80(lbs per 1/10in) 101.0(N/mm)
9-1210-26	SPRG.0.750X2.50-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	2.50(in) 64(mm)	44.00(lbs per 1/10in) 77.1(N/mm)
9-1212-26	SPRG.0.750X3.00-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	3.00(in) 76(mm)	36.20(lbs per 1/10in) 63.5(N/mm)
9-1214-26	SPRG.0.750X3.50-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	3.50(in) 89(mm)	30.80(lbs per 1/10in) 53.9(N/mm)
9-1216-26	SPRG.0.750X4.00-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	4.00(in) 102(mm)	26.80(lbs per 1/10in) 46.9(N/mm)
9-1218-26	SPRG.0.750X4.50-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	4.50(in) 115(mm)	23.70(lbs per 1/10in) 41.5(N/mm)
9-1220-26	SPRG.0.750X5.00-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	5.00(in) 127(mm)	21.20(lbs per 1/10in) 37.2(N/mm)
9-1222-26	SPRG.0.750X5.50-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	5.50(in) 139(mm)	19.30(lbs per 1/10in) 33.7(N/mm)
9-1224-26	SPRG.0.750X6.00-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	6.00(in) 152(mm)	17.60(lbs per 1/10in) 30.8(N/mm)
9-1248-26	SPRG.0.750x12.0-RED-HVY-DUTY	Rectangular	3/4(in) 20(mm)	12.00(in) 305(mm)	8.60(lbs per 1/10in) 15.1(N/mm)
9-1604-26	SPRG.1.000X1.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	1.00(in) 25(mm)	215.00(lbs per 1/10in) 376.0(N/mm)
9-1605-26	SPRG.1.000X1.25-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	1.25(in) 32(mm)	163.00(lbs per 1/10in) 285.0(N/mm)
9-1606-26	SPRG.1.000X1.50-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	1.50(in) 38(mm)	127.00(lbs per 1/10in) 222.0(N/mm)
9-1607-26	SPRG.1.000X1.75-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	1.75(in) 44(mm)	109.00(lbs per 1/10in) 190.0(N/mm)
9-1608-26	SPRG.1.000X2.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	2.00(in) 51(mm)	89.40(lbs per 1/10in) 157.0(N/mm)
9-1610-26	SPRG.1.000X2.50-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	2.50(in) 64(mm)	69.10(lbs per 1/10in) 121.0(N/mm)
9-1612-26	SPRG.1.000X3.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	3.00(in) 76(mm)	57.00(lbs per 1/10in) 100.0(N/mm)
9-1614-26	SPRG.1.000X3.50-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	3.50(in) 89(mm)	48.00(lbs per 1/10in) 84.1(N/mm)
9-1616-26	SPRG.1.000X4.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	4.00(in) 102(mm)	41.80(lbs per 1/10in) 73.3(N/mm)
9-1618-26	SPRG.1.000X4.50-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	4.50(in) 115(mm)	37.10(lbs per 1/10in) 64.9(N/mm)
9-1620-26	SPRG.1.000X5.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	5.00(in) 127(mm)	33.10(lbs per 1/10in) 57.9(N/mm)
9-1622-26	SPRG.1.000X5.50-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	5.50(in) 139(mm)	30.00(lbs per 1/10in) 52.6(N/mm)
9-1624-26	SPRG.1.000X6.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	6.00(in) 152(mm)	27.50(lbs per 1/10in) 48.1(N/mm)
9-1628-26	SPRG.1.000X7.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	7.00(in) 178(mm)	23.50(lbs per 1/10in) 41.2(N/mm)
9-1632-26	SPRG.1.000X8.00-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	8.00(in) 203(mm)	20.50(lbs per 1/10in) 35.8(N/mm)
9-1648-26	SPRG.1.000x12.0-RED-HVY-DUTY	Rectangular	1(in) 25(mm)	12.00(in) 305(mm)	13.80(lbs per 1/10in) 24.2(N/mm)
9-2006-26	SPRG.1.250X1.50-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	1.50(in) 38(mm)	223.00(lbs per 1/10in) 390.0(N/mm)
9-2007-26	SPRG.1.250X1.75-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	1.75(in) 44(mm)	182.00(lbs per 1/10in) 319.0(N/mm)
9-2008-26	SPRG.1.250X2.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	2.00(in) 51(mm)	154.00(lbs per 1/10in) 270.0(N/mm)
9-2010-26	SPRG.1.250X2.50-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	2.50(in) 64(mm)	117.00(lbs per 1/10in) 204.0(N/mm)
9-2012-26	SPRG.1.250X3.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	3.00(in) 76(mm)	94.70(lbs per 1/10in) 166.0(N/mm)
9-2014-26	SPRG.1.250X3.50-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	3.50(in) 89(mm)	80.10(lbs per 1/10in) 140.0(N/mm)
9-2016-26	SPRG.1.250X4.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	4.00(in) 102(mm)	69.10(lbs per 1/10in) 121.0(N/mm)
9-2018-26	SPRG.1.250X4.50-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	4.50(in) 115(mm)	60.70(lbs per 1/10in) 106.0(N/mm)
9-2020-26	SPRG.1.250X5.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	5.00(in) 127(mm)	54.70(lbs per 1/10in) 95.7(N/mm)
9-2022-26	SPRG.1.250X5.50-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	5.50(in) 139(mm)	49.30(lbs per 1/10in) 86.3(N/mm)
9-2024-26	SPRG.1.250X6.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	6.00(in) 152(mm)	44.90(lbs per 1/10in) 78.6(N/mm)
9-2028-26	SPRG.1.250X7.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	7.00(in) 178(mm)	38.10(lbs per 1/10in) 66.7(N/mm)
9-2032-26	SPRG.1.250X8.00-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	8.00(in) 203(mm)	33.00(lbs per 1/10in) 57.9(N/mm)
9-2040-26	SPRG.1.250x10.0-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	10.00(in) 254(mm)	26.40(lbs per 1/10in) 46.2(N/mm)
9-2048-26	SPRG.1.250x12.0-RED-HVY-DUTY	Rectangular	1 1/4(in) 32(mm)	12.00(in) 305(mm)	21.80(lbs per 1/10in) 38.7(N/mm)
9-2408-26	SPRG.1.500X2.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	2.00(in) 51(mm)	208.00(lbs per 1/10in) 363.0(N/mm)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-2410-26	SPRG.1.500X2.50-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	2.50(in) 64(mm)	153.00(lbs per 1/10in) 268.0(N/mm)
9-2412-26	SPRG.1.500X3.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	3.00(in) 76(mm)	125.00(lbs per 1/10in) 219.0(N/mm)
9-2414-26	SPRG.1.500X3.50-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	3.50(in) 89(mm)	105.00(lbs per 1/10in) 185.0(N/mm)
9-2416-26	SPRG.1.500X4.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	4.00(in) 102(mm)	90.60(lbs per 1/10in) 159.0(N/mm)
9-2418-26	SPRG.1.500X4.50-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	4.50(in) 115(mm)	80.40(lbs per 1/10in) 141.0(N/mm)
9-2420-26	SPRG.1.500X5.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	5.00(in) 127(mm)	71.50(lbs per 1/10in) 125.0(N/mm)
9-2422-26	SPRG.1.500X5.50-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	5.50(in) 139(mm)	64.30(lbs per 1/10in) 113.0(N/mm)
9-2424-26	SPRG.1.500X6.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	6.00(in) 152(mm)	59.00(lbs per 1/10in) 103.0(N/mm)
9-2428-26	SPRG.1.500X7.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	7.00(in) 178(mm)	20.30(lbs per 1/10in) 88.0(N/mm)
9-2432-26	SPRG.1.500X8.00-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	8.00(in) 203(mm)	43.80(lbs per 1/10in) 76.6(N/mm)
9-2440-26	SPRG.1.500x10.0-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	10.00(in) 254(mm)	34.60(lbs per 1/10in) 60.6(N/mm)
9-2448-26	SPRG.1.500x12.0-RED-HVY-DUTY	Rectangular	1 1/2(in) 40(mm)	12.00(in) 305(mm)	28.70(lbs per 1/10in) 50.3(N/mm)
9-3210-26	SPRG.2.000X2.50-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	2.50(in) 64(mm)	242.00(lbs per 1/10in) 423.0(N/mm)
9-3212-26	SPRG.2.000X3.00-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	3.00(in) 76(mm)	193.00(lbs per 1/10in) 338.0(N/mm)
9-3214-26	SPRG.2.000X3.50-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	3.50(in) 89(mm)	160.00(lbs per 1/10in) 281.0(N/mm)
9-3216-26	SPRG.2.000X4.00-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	4.00(in) 102(mm)	140.00(lbs per 1/10in) 244.0(N/mm)
9-3218-26	SPRG.2.000X4.50-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	4.50(in) 115(mm)	123.00(lbs per 1/10in) 215.0(N/mm)
9-3220-26	SPRG.2.000X5.00-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	5.00(in) 127(mm)	108.00(lbs per 1/10in) 189.0(N/mm)
9-3222-26	SPRG.2.000X5.50-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	5.50(in) 139(mm)	96.40(lbs per 1/10in) 169.0(N/mm)
9-3224-26	SPRG.2.000X6.00-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	6.00(in) 152(mm)	88.00(lbs per 1/10in) 154.0(N/mm)
9-3228-26	SPRG.2.000X7.00-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	7.00(in) 178(mm)	75.00(lbs per 1/10in) 131.0(N/mm)
9-3232-26	SPRG.2.000X8.00-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	8.00(in) 203(mm)	65.30(lbs per 1/10in) 114.0(N/mm)
9-3240-26	SPRG.2.000x10.0-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	10.00(in) 254(mm)	51.30(lbs per 1/10in) 89.7(N/mm)
9-3248-26	SPRG.2.000x12.0-RED-HVY-DUTY	Rectangular	2(in) 50(mm)	12.00(in) 305(mm)	42.60(lbs per 1/10in) 74.6(N/mm)

DieMax XL Springs: Extra Heavy Load (Yellow)

Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-0604-36	SPRG.0.375X1.00-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	1.00(in) 25(mm)	18.70(lbs per 1/10in) 32.8(N/mm)
9-0605-36	SPRG.0.375X1.25-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	1.25(in) 32(mm)	14.60(lbs per 1/10in) 25.6(N/mm)
9-0606-36	SPRG.0.375X1.50-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	1.50(in) 38(mm)	12.10(lbs per 1/10in) 21.2(N/mm)
9-0607-36	SPRG.0.375X1.75-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	1.75(in) 44(mm)	10.10(lbs per 1/10in) 17.6(N/mm)
9-0608-36	SPRG.0.375X2.00-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	2.00(in) 51(mm)	8.80(lbs per 1/10in) 15.3(N/mm)
9-0610-36	SPRG.0.375X2.50-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	2.50(in) 64(mm)	7.00(lbs per 1/10in) 12.2(N/mm)
9-0612-36	SPRG.0.375X3.00-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	3.00(in) 76(mm)	5.80(lbs per 1/10in) 10.1(N/mm)
9-0648-36	SPRG.0.375X12.0-YELLOW-X-HEAVY	Rectangular	3/8(in) 10(mm)	12.00(in) 305(mm)	1.40(lbs per 1/10in) 2.5(N/mm)
9-0804-36	SPRG.0.500X1.00-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	1.00(in) 25(mm)	33.50(lbs per 1/10in) 58.6(N/mm)
9-0805-36	SPRG.0.500X1.25-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	1.25(in) 32(mm)	25.20(lbs per 1/10in) 44.2(N/mm)
9-0806-36	SPRG.0.500X1.50-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	1.50(in) 38(mm)	20.70(lbs per 1/10in) 36.2(N/mm)
9-0807-36	SPRG.0.500X1.75-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	1.75(in) 44(mm)	17.50(lbs per 1/10in) 30.6(N/mm)
9-0808-36	SPRG.0.500X2.00-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	2.00(in) 51(mm)	15.40(lbs per 1/10in) 27.0(N/mm)
9-0810-36	SPRG.0.500X2.50-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	2.50(in) 64(mm)	12.50(lbs per 1/10in) 21.8(N/mm)
9-0812-36	SPRG.0.500X3.00-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	3.00(in) 76(mm)	10.10(lbs per 1/10in) 17.7(N/mm)
9-0814-36	SPRG.0.500X3.50-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	3.50(in) 89(mm)	8.50(lbs per 1/10in) 15.1(N/mm)
9-0848-36	SPRG.0.500x12.0-YELLOW-X-HEAVY	Rectangular	1/2(in) 12.5(mm)	12.00(in) 305(mm)	2.41(lbs per 1/10in) 4.2(N/mm)
9-1004-36	SPRG.0.625X1.00-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	1.00(in) 25(mm)	72.70(lbs per 1/10in) 127.0(N/mm)
9-1005-36	SPRG.0.625X1.25-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	1.25(in) 32(mm)	53.70(lbs per 1/10in) 94.1(N/mm)
9-1006-36	SPRG.0.625X1.50-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	1.50(in) 38(mm)	43.30(lbs per 1/10in) 75.9(N/mm)
9-1007-36	SPRG.0.625X1.75-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	1.75(in) 44(mm)	36.30(lbs per 1/10in) 63.6(N/mm)
9-1008-36	SPRG.0.625X2.00-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	2.00(in) 51(mm)	31.70(lbs per 1/10in) 55.5(N/mm)
9-1010-36	SPRG.0.625X2.50-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	2.50(in) 64(mm)	24.70(lbs per 1/10in) 43.3(N/mm)
9-1012-36	SPRG.0.625X3.00-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	3.00(in) 76(mm)	20.30(lbs per 1/10in) 35.5(N/mm)
9-1014-36	SPRG.0.625X3.50-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	3.50(in) 89(mm)	17.30(lbs per 1/10in) 30.3(N/mm)
9-1016-36	SPRG.0.625X4.00-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	4.00(in) 102(mm)	15.10(lbs per 1/10in) 26.4(N/mm)
9-1048-36	SPRG.0.625X12.0-YELLOW-X-HEAVY	Rectangular	5/8(in) 16(mm)	12.00(in) 305(mm)	4.88(lbs per 1/10in) 8.6(N/mm)
9-1204-36	SPRG.0.750X1.00-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	1.00(in) 25(mm)	183.00(lbs per 1/10in) 320.0(N/mm)
9-1205-36	SPRG.0.750X1.25-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	1.25(in) 32(mm)	137.00(lbs per 1/10in) 240.0(N/mm)
9-1206-36	SPRG.0.750X1.50-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	1.50(in) 38(mm)	111.00(lbs per 1/10in) 194.0(N/mm)
9-1207-36	SPRG.0.750X1.75-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	1.75(in) 44(mm)	92.40(lbs per 1/10in) 162.0(N/mm)
9-1208-36	SPRG.0.750X2.00-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	2.00(in) 51(mm)	79.70(lbs per 1/10in) 140.0(N/mm)
9-1210-36	SPRG.0.750X2.50-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	2.50(in) 64(mm)	62.10(lbs per 1/10in) 109.0(N/mm)
9-1212-36	SPRG.0.750X3.00-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	3.00(in) 76(mm)	51.20(lbs per 1/10in) 89.7(N/mm)
9-1214-36	SPRG.0.750X3.50-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	3.50(in) 89(mm)	43.20(lbs per 1/10in) 75.6(N/mm)
9-1216-36	SPRG.0.750X4.00-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	4.00(in) 102(mm)	37.30(lbs per 1/10in) 65.3(N/mm)
9-1218-36	SPRG.0.750X4.50-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	4.50(in) 115(mm)	32.80(lbs per 1/10in) 57.5(N/mm)
9-1220-36	SPRG.0.750X5.00-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	5.00(in) 127(mm)	29.50(lbs per 1/10in) 51.7(N/mm)
9-1222-36	SPRG.0.750X5.50-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	5.50(in) 139(mm)	26.60(lbs per 1/10in) 46.6(N/mm)
9-1224-36	SPRG.0.750X6.00-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	6.00(in) 152(mm)	24.30(lbs per 1/10in) 42.5(N/mm)
9-1248-36	SPRG.0.750x12.0-YELLOW-X-HEAVY	Rectangular	3/4(in) 20(mm)	12.00(in) 305(mm)	12.00(lbs per 1/10in) 20.9(N/mm)
9-1605-36	SPRG.1.000X1.25-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	1.25(in) 32(mm)	202.00(lbs per 1/10in) 354.0(N/mm)
9-1606-36	SPRG.1.000X1.50-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	1.50(in) 38(mm)	160.00(lbs per 1/10in) 280.0(N/mm)
9-1607-36	SPRG.1.000X1.75-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	1.75(in) 44(mm)	132.00(lbs per 1/10in) 232.0(N/mm)
9-1608-36	SPRG.1.000X2.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	2.00(in) 51(mm)	113.00(lbs per 1/10in) 198.0(N/mm)
9-1610-36	SPRG.1.000X2.50-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	2.50(in) 64(mm)	87.80(lbs per 1/10in) 154.0(N/mm)
9-1612-36	SPRG.1.000X3.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	3.00(in) 76(mm)	71.40(lbs per 1/10in) 125.0(N/mm)
9-1614-36	SPRG.1.000X3.50-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	3.50(in) 89(mm)	60.20(lbs per 1/10in) 105.0(N/mm)
9-1616-36	SPRG.1.000X4.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	4.00(in) 102(mm)	52.00(lbs per 1/10in) 91.1(N/mm)
9-1618-36	SPRG.1.000X4.50-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	4.50(in) 115(mm)	46.20(lbs per 1/10in) 80.9(N/mm)
Part No.	Description	Wire Type	A - Hole Diameter	C - Free Length	Spring Constant
9-1620-36	SPRG.1.000X5.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	5.00(in) 127(mm)	41.20(lbs per 1/10in) 72.2(N/mm)
9-1622-36	SPRG.1.000X5.50-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	5.50(in) 140(mm)	37.50(lbs per 1/10in) 65.6(N/mm)
9-1624-36	SPRG.1.000X6.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	6.00(in) 152(mm)	34.40(lbs per 1/10in) 60.2(N/mm)
9-1628-36	SPRG.1.000X7.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	7.00(in) 178(mm)	29.30(lbs per 1/10in) 51.3(N/mm)
9-1632-36	SPRG.1.000X8.00-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	8.00(in) 203(mm)	25.50(lbs per 1/10in) 44.7(N/mm)
9-1648-36	SPRG.1.000x12.0-YELLOW-X-HEAVY	Rectangular	1(in) 25(mm)	12.00(in) 305(mm)	16.90(lbs per 1/10in) 29.5(N/mm)
9-2006-36	SPRG.1.250X1.50-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	1.50(in) 38(mm)	279.00(lbs per 1/10in) 488.0(N/mm)
9-2007-36	SPRG.1.250X1.75-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	1.75(in) 44(mm)	231.00(lbs per 1/10in) 404.0(N/mm)
9-2008-36	SPRG.1.250X2.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	2.00(in) 51(mm)	197.00(lbs per 1/10in) 344.0(N/mm)
9-2010-36	SPRG.1.250X2.50-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	2.50(in) 64(mm)	152.00(lbs per 1/10in) 266.0(N/mm)
9-2012-36	SPRG.1.250X3.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	3.00(in) 76(mm)	123.00(lbs per 1/10in) 215.0(N/mm)
9-2014-36	SPRG.1.250X3.50-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	3.50(in) 89(mm)	104.00(lbs per 1/10in) 182.0(N/mm)
9-2016-36	SPRG.1.250X4.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	4.00(in) 102(mm)	88.90(lbs per 1/10in) 156.0(N/mm)
9-2018-36	SPRG.1.250X4.50-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	4.50(in) 115(mm)	77.50(lbs per 1/10in) 136.0(N/mm)
9-2020-36	SPRG.1.250X5.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	5.00(in) 127(mm)	69.60(lbs per 1/10in) 122.0(N/mm)
9-2022-36	SPRG.1.250X5.50-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	5.50(in) 140(mm)	63.60(lbs per 1/10in) 111.0(N/mm)
9-2024-36	SPRG.1.250X6.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	6.00(in) 152(mm)	57.60(lbs per 1/10in) 101.0(N/mm)
9-2028-36	SPRG.1.250X7.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	7.00(in) 178(mm)	48.90(lbs per 1/10in) 85.5(N/mm)
9-2032-36	SPRG.1.250X8.00-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	8.00(in) 203(mm)	42.60(lbs per 1/10in) 74.7(N/mm)
9-2040-36	SPRG.1.250x10.0-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	10.00(in) 254(mm)	34.00(lbs per 1/10in) 59.5(N/mm)
9-2048-36	SPRG.1.250x12.0-YELLOW-X-HEAVY	Rectangular	1 1/4(in) 32(mm)	12.00(in) 305(mm)	28.30(lbs per 1/10in) 49.5(N/mm)
9-2408-36	SPRG.1.500X2.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	2.00(in) 51(mm)	319.00(lbs per 1/10in) 559.0(N/mm)
9-2410-36	SPRG.1.500X2.50-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	2.50(in) 64(mm)	241.00(lbs per 1/10in) 421.0(N/mm)
9-2412-36	SPRG.1.500X3.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	3.00(in) 76(mm)	193.00(lbs per 1/10in) 338.0(N/mm)
9-2414-36	SPRG.1.500X3.50-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	3.50(in) 89(mm)	160.00(lbs per 1/10in) 279.0(N/mm)
9-2416-36	SPRG.1.500X4.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	4.00(in) 102(mm)	139.00(lbs per 1/10in) 244.0(N/mm)
9-2418-36	SPRG.1.500X4.50-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	4.50(in) 115(mm)	122.00(lbs per 1/10in) 214.0(N/mm)
9-2420-36	SPRG.1.500X5.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	5.00(in) 127(mm)	108.00(lbs per 1/10in) 190.0(N/mm)
9-2422-36	SPRG.1.500X5.50-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	5.50(in) 140(mm)	97.60(lbs per 1/10in) 171.0(N/mm)
9-2424-36	SPRG.1.500X6.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	6.00(in) 152(mm)	88.70(lbs per 1/10in) 155.0(N/mm)
9-2428-36	SPRG.1.500X7.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	7.00(in) 178(mm)	75.00(lbs per 1/10in) 131.0(N/mm)
9-2432-36	SPRG.1.500X8.00-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	8.00(in) 203(mm)	65.00(lbs per 1/10in) 144.0(N/mm)
9-2440-36	SPRG.1.500x10.0-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	10.00(in) 254(mm)	51.60(lbs per 1/10in) 90.4(N/mm)
9-2448-36	SPRG.1.500x12.0-YELLOW-X-HEAVY	Rectangular	1 1/2(in) 40(mm)	12.00(in) 305(mm)	42.80(lbs per 1/10in) 75.0(N/mm)
9-3210-36	SPRG.2.000X2.50-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	2.50(in) 64(mm)	414.00(lbs per 1/10in) 724.0(N/mm)
9-3212-36	SPRG.2.000X3.00-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	3.00(in) 76(mm)	327.00(lbs per 1/10in) 573.0(N/mm)
9-3214-36	SPRG.2.000X3.50-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	3.50(in) 89(mm)	271.00(lbs per 1/10in) 474.0(N/mm)
9-3216-36	SPRG.2.000X4.00-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	4.00(in) 102(mm)	231.00(lbs per 1/10in) 404.0(N/mm)
9-3218-36	SPRG.2.000X4.50-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	4.50(in) 115(mm)	201.00(lbs per 1/10in) 353.0(N/mm)
9-3220-36	SPRG.2.000X5.00-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	5.00(in) 127(mm)	179.00(lbs per 1/10in) 313.0(N/mm)
9-3222-36	SPRG.2.000X5.50-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	5.50(in) 140(mm)	161.00(lbs per 1/10in) 282.0(N/mm)
9-3224-36	SPRG.2.000X6.00-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	6.00(in) 152(mm)	145.00(lbs per 1/10in) 255.0(N/mm)
9-3228-36	SPRG.2.000X7.00-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	7.00(in) 178(mm)	123.00(lbs per 1/10in) 215.0(N/mm)
9-3232-36	SPRG.2.000X8.00-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	8.00(in) 203(mm)	106.00(lbs per 1/10in) 186.0(N/mm)
9-3240-36	SPRG.2.000x10.0-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	10.00(in) 254(mm)	83.50(lbs per 1/10in) 146.0(N/mm)
9-3248-36	SPRG.2.000x12.0-YELLOW-X-HEAVY	Rectangular	2(in) 50(mm)	12.00(in) 305(mm)	68.90(lbs per 1/10in) 121.0(N/mm)

專業銷售進口原裝德國Danly彈簧

聯系方式

北京漢達森機械技術有限公司

總部地址：北京市順義區旭輝空港中心 C-1035

電話：010-64714988/010-64717020

傳真：010-64714988/010-64717020 - 666

網址：http://m.swxms.com/

北京漢達森機械技術有限公司

全網同類推薦

為您推薦

免責聲明：: 當前頁為專業銷售進口原裝德國Danly彈簧信息展示，本頁所展示的專業銷售進口原裝德國Danly彈簧圖片、專業銷售進口原裝德國Danly彈簧文字等相關信息均為提供借鑒和參考，專業銷售進口原裝德國Danly彈簧信息展示不能作為真實性、準確性、合法性的依據。北京漢達森機械技術有限公司保留在不通知的情況下隨時修改的權力。

友情提醒：: 建議您通過撥打專業銷售進口原裝德國Danly彈簧頁面上的聯系方式確認最終價格，并索要專業銷售進口原裝德國Danly彈簧書面報價單。以實際簽訂合同的最終價格和技術參數為準。

技術：北京漢達森機械技術有限公司

ICP備案：京ICP備12013454號-1

關于我們: 北京漢達森機械技術有限公司; 總部地址：北京市順義區旭輝空港中心 C-1035

聯系我們: 電話：010-64714988/010-64717020; 傳真：010-64714988/010-64717020 - 666

主營漢達森高偉產品: 截止閥，調節閥，齒輪泵，限位開關等

在線客服

工作日

9:00-18:00
二維碼
返回頂部
返回頂部

天天天欲色欲色www免费_天天躁夜夜躁狠狠躁2021_2018天天躁夜夜躁狠狠躁_色欲香天天天综合网站小说
