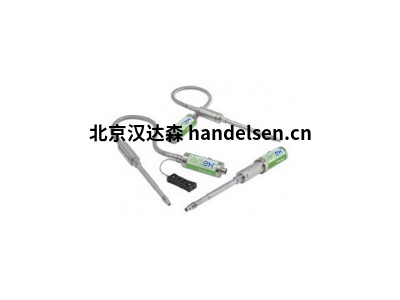

Dynisco壓力傳感器Vertex?系列
Dynisco壓力傳感器Vertex™系列
■無填充介質，無移動部件
■RoHS兼容可持續環境概念
■具有Dymax涂層®的堅固Inconel膜
■測量膜比常規標準膜堅固得多，并具有獨特的側壁加固
■可提供J型溫度輸出
■測量范圍從100bar到700bar
描述
Vertex™是Dynisco熔體壓力傳感器的一項創新，可實現
遠遠超過了常規傳感器的性能。的
顯著的差異是更大的魯棒性，較短的響應時間和
出色的環境友好性。
革命性的技術基于傳感器的探針尖端，
直接記錄壓力的主要方法是非常強大，不敏感
膜。直接的主要測量消除了相關的錯誤
帶變速箱油和/或運動部件的z-BSP。發生柱塞
能夠。由硬質Inconel 718制成的Vertex膜比標準壓力傳感器要厚得多，比通常的膜更耐腐蝕
不銹鋼。極其堅硬的DyMax®提供進一步的保護
防護面。傳感器尖端的側翼通過
承受最大的橫向力。憑借所有這些新功能，VertexSeries定義了耐用的傳感器技術，使用壽命長，并且
維護成本低。
創新的頂點構造還可以縮短反應時間
測量信號。就測量值處理而言，處理速度更快
需要更快的傳感器元件。特別是在
生產需要加速的數據流，這就是為什么頂點壓力傳感器設計用于更快的測量的原因。
促進新的環境立法和社會總體趨勢
為了保護環境而可持續利用資源。對于
頂點意味著特別長的使用壽命或過程中的使用壽命，
既有利于環境又有利于減少更換傳感器的特性
相同的時間段，以及為用戶節省成本。迪尼斯科
順應這一趨勢，并通過Vertex提供了一種“綠色產品”
要求。沒有汞，NaK，油或鎵之類的東西
不僅僅是用于壓力傳輸的填充介質。頂點也完全符合RoHS
兼容。
頂點技術可用于輸出信號3.33mV / V和
4..20mA。也可以選擇提供熱電偶輸出。什么時候
機械接口，則必須使用½“ UNF螺紋。
性能特點
輸入電源：mV / V：6-12VDC;毫安：16-36VDC
模擬輸出：3.33mV / V或4-20mA
精度*：±0.25％FS
電子工作溫度，最高溫度：85°C
零點漂移（電子溫度）：0.022％/°C
范圍漂移（電子溫度）：0.022％/°C
六角轉變溫度（最高）：150°C
零點漂移（六邊形溫度）：0.039％/°C
過載壓力：1.5倍m測量范圍
壓力測量范圍（bar 100、200、350、500和700 bar
壓力單位：PSI，Bar，Kg / cm2，MPa，KPa
零點調整（±％FS）：mV / V：無;毫安：-6至+ 12％
零點調整范圍：mV / V：10％;毫安：±3％
絕緣電阻：mV / V：100MΩ@ 50VDC;
內部校準電阻（R-Cal）：80％FSO±1％FS
機械和熱數據
膜溫度：-40°C至400°C
與介質接觸的零件：具有DyMax®涂層的Inconel 718
零點漂移
工藝溫度變化：2.0％/ 100°C
過程連接：1 / 2-20 UNF（具有45°密封面）
電氣連接（插頭）：Bendix PT02A-10-6P
擰入扭矩：25Nm，最大55Nm
溫度傳感器（可選）：J型熱電偶
（僅適用于具有靈活性的單元
連接）
認證證書
標準，認證，認可
CE：指令2004/108 / EC
ISO：ISO 9001、2012年
